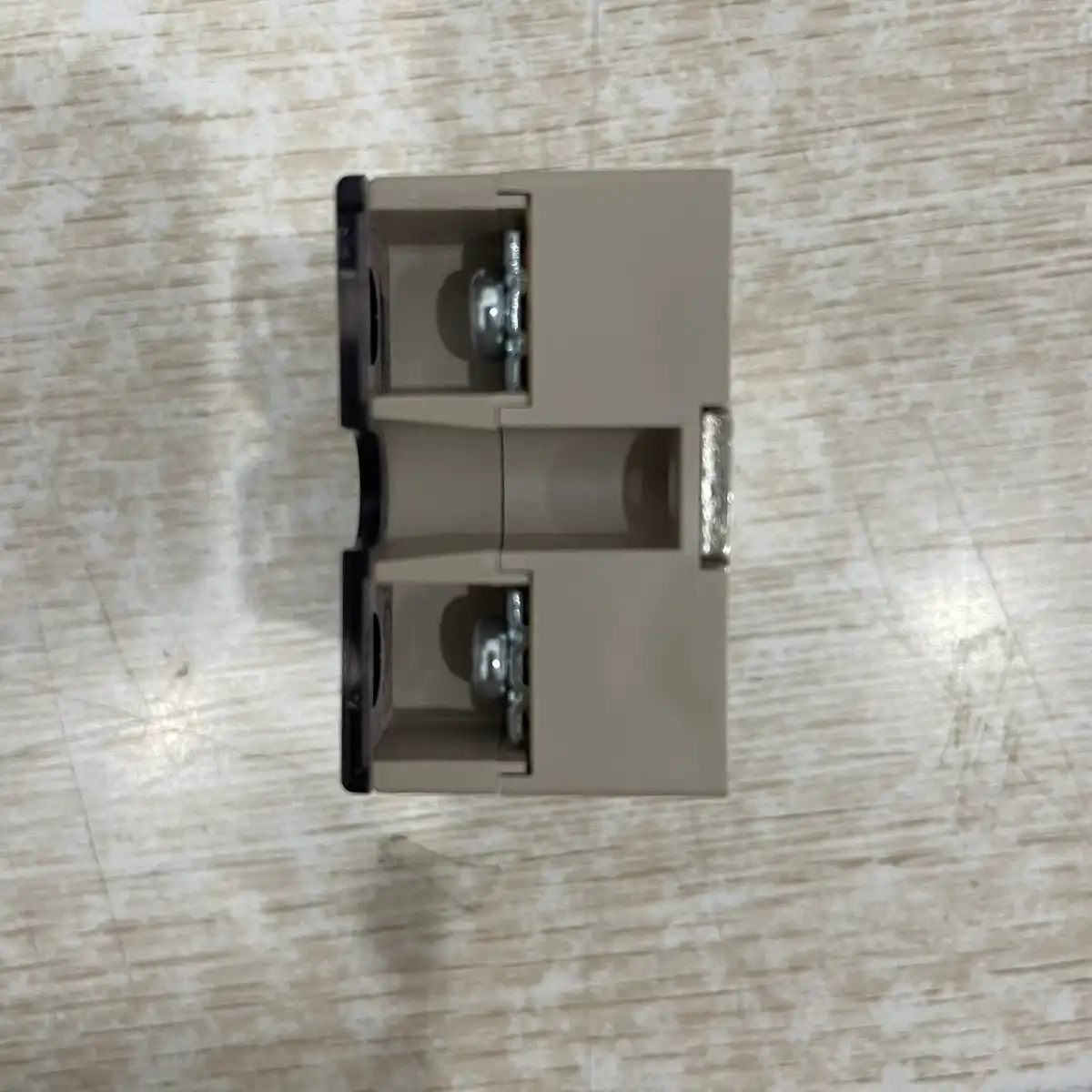

G3NA-D210B-UTU DC5-24 Solid State Relay
SKU: G3NA-D210B-UTU DC5-24Photocoupler isolated solid state relay for single-phase heater applications with 10A load capacity at 5-200VDC, featuring screw terminals and UL/CSA/EN certifications.
Key Features
- Photocoupler isolation for enhanced safety and noise immunity
- High load capacity: 10A with heat sink, 4A without heat sink
- Wide operating voltage range: 5-200VDC output
- UL, CSA, and EN (TUV) certified for global compliance
- Screw terminal design for secure connections
- Built-in operating indicator for visual status confirmation
High Reliability DC Output Solid State Relay
The Omron G3NA-D210B-UTU is a photocoupler isolated solid state relay designed for single-phase heater applications. It provides reliable DC switching with a wide operating voltage range of 5-24VDC input and 5-200VDC output. With a maximum load current of 10A when used with a heat sink, this relay offers excellent performance for industrial heating applications. The screw terminal design ensures secure connections, while the built-in operating indicator provides visual status confirmation. Certified by UL, CSA, and EN (TUV), this relay meets rigorous international safety standards for industrial automation equipment.
Technical Specifications
| Product Classification | For single-phase heater |
|---|---|
| Isolation Method | Photocoupler |
| Rated Voltage | 5 to 24 VDC |
| Rated Load Voltage | 5 to 200 VDC |
| Load Current (with heat sink) | 0.1 to 10 A at 40℃ |
| Load Current (without heat sink) | 0.1 to 4 A at 40℃ |
| Terminal Structure | Screw terminal |
| Operate Time | 1 ms max. |
| Release Time | 5 ms max. |
| Inrush Current Resistivity | 20 A (10 ms) |
| Operating Temperature | -30 to 80℃ (with no freezing or condensation) |
| Weight | Approx. 70 g |
